Temporary Isolation of Supply

You need to complete a Temporary Isolation of Supply form if you are:

  • Undertaking works on a property that need the entire electrical supply after the incoming service fuse to be made safe.
  • Moving the electricity meter within its existing cupboard or incoming service footprint.
  • Upgrading the main switch or distribution board immediately after the outgoing supply of the meter.

Temporary Isolation of Supply Form

122kb
Download

Important information

Please DO NOT attempt to isolate the supply yourself either at the meter or at our service cut out. It is highly dangerous and illegal to tamper with the service.

We offer the Temporary Isolation of Supply service free of charge within regular working hours if we receive adequate notice of the works.

If you need us to remove a service from a property entirely, then we need you to submit a Redundant Services form.

Redundant services form

96kb
Download

Before installation

Fill out the form correctly

Please ensure you fill in the form correctly, including all necessary details. Missing information will delay the processing your request, and you may lose your requested slot.

Provide additional details

Please provide details of the reason for the isolation of supply with suitable photographs of the incoming service area.

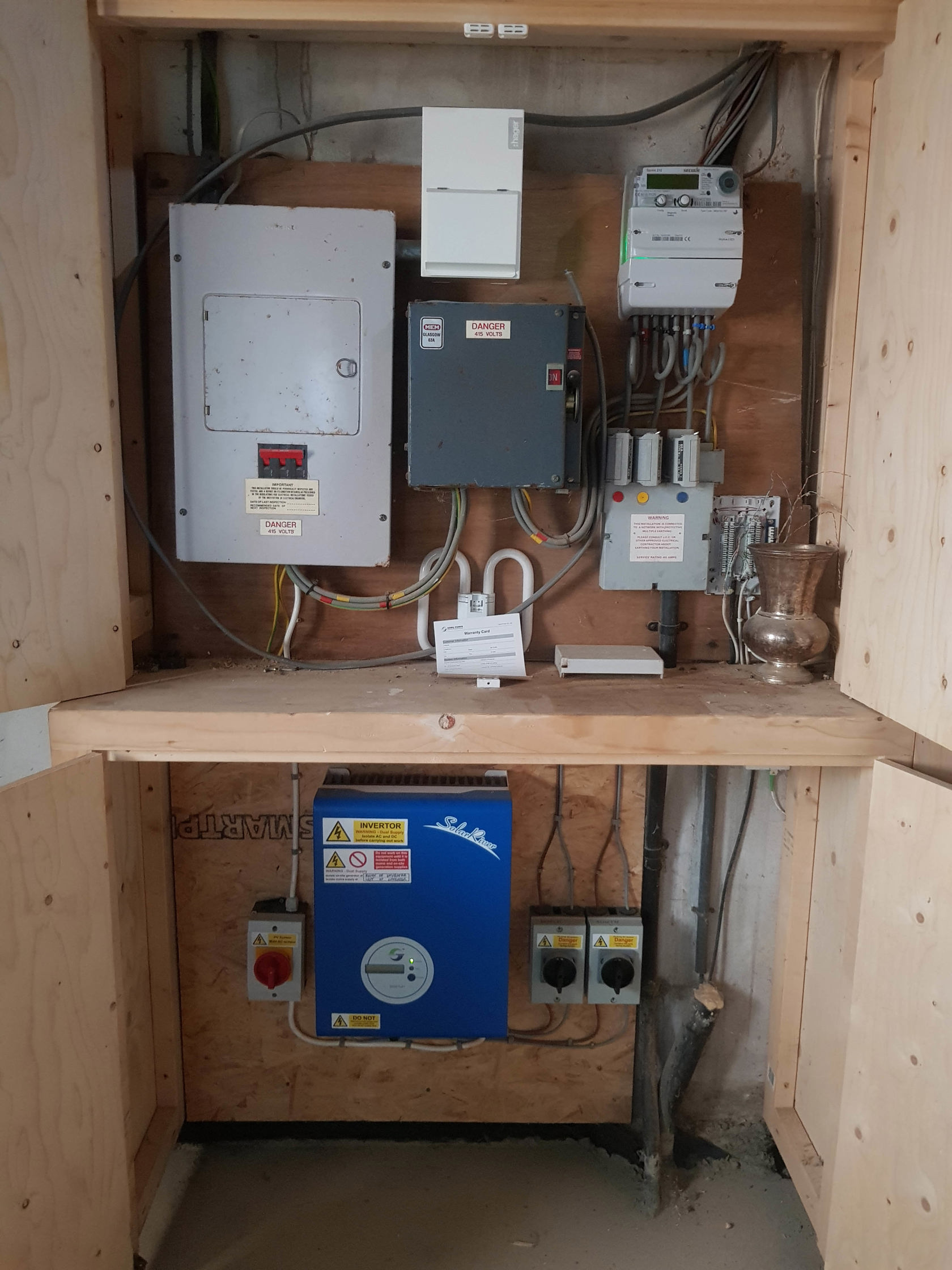

Tidy three phase meter cupboard installation
An example of the incoming service area of a three phase supply.

Provide the right contact details

Our meter technician will call you the afternoon before to confirm you are ready for the isolation and to confirm access and job-specific details. Please make sure you have provided us with the right contact details for your site operative.

Installation: what to expect

  • Our technician will attend the site at the time agreed with you on the previous day.
  • We will check the installation before we proceed and confirm your intended works will not hinder or endanger our equipment.
  • When we are satisfied, we will isolate the incoming service by removing the fuse and re-sealing the empty carrier in place with a 'Danger Live' notice.

REMEMBER: Our main service cable and service head are still LIVE at this point and will remain so.

After installation

  • Our technician will return as agreed with your contractor on-site to replace the service fuse, as well as connect in the new meter tails (cables) if required.
  • Please be aware that if the installation appears not to meet the standards required, or if the work has significantly deviated from the planned works, our technician reserves the right to leave the property off supply until it is corrected.
  • We WILL NOT energise a supply deemed unsafe or unfinished.

Additional load

If your works include any additional load, then you MUST also submit an Electricity Supply Enquiry (ESE) form.

Electricity Supply Enquiry

157kb
Download

Tariff change or meter connection

If your works require a tariff change, or a connection of a new meter to a new supply or existing supply that no longer has a meter, then you need to submit  Connection of Meter form.

Connection of Meter form

164kb
Download

Need more information?

For further information on supply isolation and connection, please contact us using the methods below.

Phone Graphic

Phone

For further information on supply isolation and connection, please call us on 01534 505711.

Call us

Your Customer Number

Your 5 character Customer Number can be found in the top right and bottom left corners of your bill.

Example electricity bill with the customer number highlighted

Daily Service Charge

The Daily Service Charge covers energy support services such as metering, billing, Customer Care, safety obligations and other energy support services.

Off-peak

Off-peak means not at the most popular time. Some of our tariffs provide discounted rates at off-peak times - for example, during certain periods at night.

Off peak charging times

Our current off peak electric vehicles times are from 00:00 to 06:59.

Dedicated supply circuit

A dedicated supply circuit is an electrical circuit that is set aside for a specific purpose, such as powering a boiler. It will work with a single appliance only.

It will have its own circuit breaker in your fuse box, and no other device or appliance will be able to draw power from it. A dedicated supply circuit ensures that appliances can draw the current they need without overloading your system, blowing a fuse or tripping an electric circuit.

Invoice Number

This can be found on the top right corner of your bill here

Example electricity bill with invoice number

Premise Number

This can be found on the top right corner and bottom left corner of your bill.

Example electricity bill with premise number highlighted

Payment Slip

This can be found at the bottom of your bill here

Bill payment slip example

Peak Load

Peak load or peak demand is a short period when the demand for electricity is at its highest.

Kilowatt Hours

Electricity consumption is usually measured in kilowatt hours, or kWh for short. Each kWh of electricity equates to 'one unit of electricity' for billing purposes. A 1kW (1,000 Watts) appliance in use for one hour = 1kWh (one unit). The cost per unit used depends on which tariff you are on.

Three phase

Residential homes are usually served by a single-phase power supply, while commercial and industrial facilities usually use a three-phase supply.

One difference between single-phase and three-phase is that a three-phase power supply better accommodates higher loads. Single-phase power supplies are most commonly used when typical loads are lighting or heating, rather than large electric motors.

Another important difference between 3-phase power and single phase power is the consistency of power delivery. Because of the variations in voltage, single-phase power supply does not offer the same consistency as a three-phase power supply. A three-phase power supply delivers power at a steady, constant rate.

kVA

A kVA is simply 1,000 volt-amps. A volt-amp, or ampere, (VA) is the voltage times the current feeding an electrical load.

Embedded generator

Embedded generators like wind turbines and solar panels are connected to your electricity supply and provide electricity for onsite use. They also have the capability to export back to the grid.

Smart Card Number

Your Smart Card Number is the 19-digit number displayed below the barcode on your Smart Card.

The Smart Card Number also contains your six-digit Meter Number that is also displayed on your meter. You need this to top up a Smart Pay As You Go Meter whether at a Payzone outlet or online.

Example of Smart card for meter charging

Smart Card

A Smart Card contains your unique Smart Card Number used when topping up a Smart Pay As You Go Meter.

Example of a smart card for meter charging

F-Credit

F-credit is a Pay As You Go meter display and means Friendly Credit. It is the period between 9pm and 8am. If the credit on your meter runs out during this period, your supply will remain on until 8am.

Decarbonise

The process of reducing carbon by replacing fossil fuels with fuel that is less harmful to the environment such as low-carbon electricity.

Regenerative braking

With conventional braking systems, the kinetic energy that was propelling the vehicle forward gets converted to unwanted and wasted heat by the friction of the brakes.

Regenerative braking recaptures much of the car's kinetic energy and converts it into electricity, so that it can be used to recharge the car's batteries.

In addition to improving the efficiency of a vehicle, regeneration can significantly extend the life of the braking system, as the mechanical parts will not wear out as quickly.

Power factor

Power factor is the ratio of useful power in kilowatts (kW) to apparent power, measured in kilovolt amperes (kVA). A perfect power factor would be 1.0, however in reality this is almost impossible to achieve. Office buildings are usually between 0.98 and 0.92. Bad power factor is anything below 0.85.

Electric flow boiler

Electric flow boilers are simple to install, quiet in operation, 100% efficient and integrate into most existing radiator or underfloor piped systems. Plus, with no flue or storage tank, an electric boiler is a space-saving option that can be installed almost anywhere in your home.

Approved heating system

A heating system, approved by Jersey Electricity, on a dedicated supply for use on one of our discounted heating tariffs.

To learn more about what's required for an approved heating system, view our current approved heating guidelines.

20-digit payment code

The 20-digit payment code is issued with your receipt for a Pay As You Go (PAYG) meter top-up. If your meter did not charge automatically, you can do it manually with the payment code. Press button A on your meter then key in your 20-digit payment confirmation code on the meter keypad, then press button B. Your meter will recognise the amount paid and charge accordingly.

Single phase

Single-phase power supplies are most commonly used when typical loads are lighting or heating, as in a domestic home, rather than large electric motors and higher loads. Single-phase power is a two-wire alternating current (AC) power circuit.
